The Ultimate Maintenance & Lubrication Guide for Pneumatic Rock Loaders

In the harsh, dusty, and wet environment of underground mining, your pneumatic rock loader—often called a rocker shovel or mucking machine—is the beating heart of your production cycle. Whether you are running a classic Eimco 12B or a modern ZQ series loader, one harsh truth remains: a single day of unplanned downtime can cost thousands in lost production and idle labor.

The secret to maximizing the lifespan of these rugged machines, and avoiding catastrophic field failures, isn't a mystery. It boils down to two non-negotiable disciplines: strict daily maintenance and scientific lubrication. This guide serves as a printable reference for your underground crew, providing a clear checklist to keep your air loader running shift after shift.

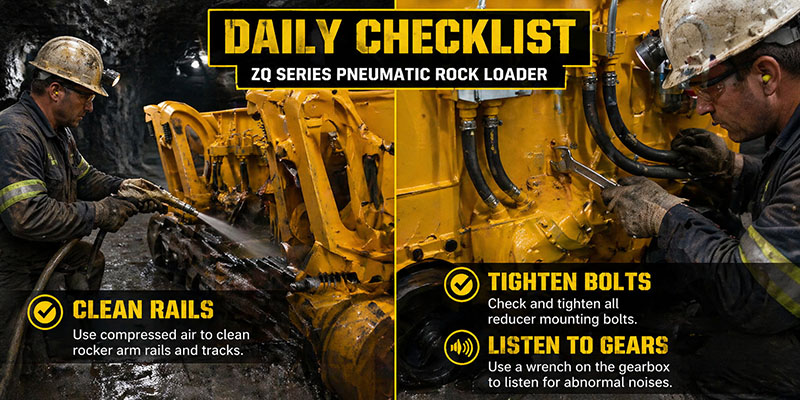

6 Essential Daily Maintenance Steps for Your Rocker Shovel

Prevention is always cheaper than a rebuild. When the shift whistle blows, the work for the operator and mechanic isn't quite over. Implementing these six rock loader maintenance steps per shift will catch small issues before they escalate into major air loader repair bills.

The Daily Checklist:

1. Clean Exposed Parts and Rails: After every shift, use compressed air to blow off the machine. Pay particular attention to the curved rocker arm rails where the bucket frame rolls. Accumulated grit and fine rock dust act like sandpaper here, accelerating wear on these critical bearing surfaces. A clean machine is a cool, inspected machine.

2. Check Fasteners for Looseness: Vibration is a constant enemy in pneumatic rocker shovel upkeep. Carefully inspect all connection bolts on the reducer (gearbox) housings and the air motor mounts. A loose bolt on a traction motor can quickly lead to misalignment and stripped gears. Tighten immediately if any movement is detected.

3. Inspect Lifting Mechanisms: Examine the lifting chain for kinks or stiff links. Check the buffer springs for cracks or fatigue. Ensure the fasteners on the lifting drum are secure. These components take the full shock load of the overshot bucket throw; nipping a minor fault here prevents a dangerous mid-cycle failure.

4. Listen to the Gears: Train your operators to listen to the machine while it runs. A change in the sound of the gearbox—such as grinding, knocking, or excessive whining—is often the first indicator of bearing failure or lubrication starvation. Shut down and investigate abnormal noises immediately.

5. Monitor Wire Rope Tension: The wire ropes controlling the bucket movement must maintain proper tension. Inspect for frayed strands, kinks, or flattening. A slack rope can jump the sheave, while a frayed rope is a serious safety hazard. Adjust or replace as necessary per shift inspection.

6. Strict Lubrication: This is the most crucial step of all. Mucking machine lubrication is the lifeblood that separates a 20-year workhorse from a scrap heap candidate. Ensure the main air lubricator (oiler) is filled and functioning before startup. We'll detail the exact lubrication schedule below.

Establishing a Standardized Repair Cycle

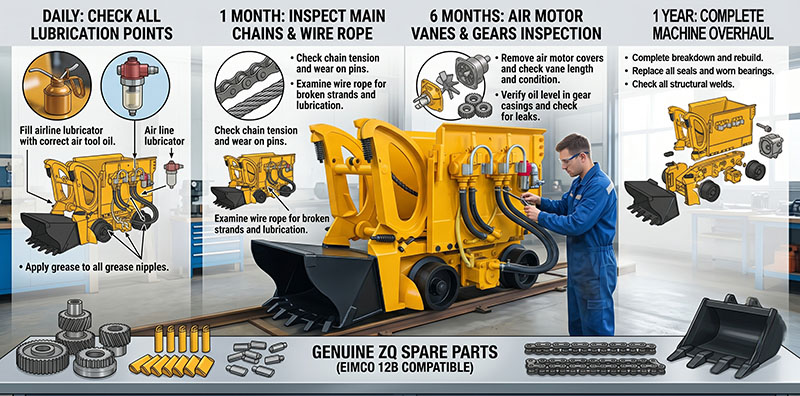

Beyond the daily checklist, every mine should operate on a structured preventive maintenance calendar. Waiting for a breakdown is not a maintenance strategy. Use this standardized schedule as a framework for planning your pneumatic rocker shovel upkeep:

• Daily Maintenance (Per Shift): Perform the 6-step inspection and cleaning listed above.

• Minor Repair (1 Month): Tighten track bolts, replace worn cotter pins in the chain linkage, adjust brake bands, and flush the main air line filter.

• Medium Repair (6 Months): Replace the lifting chain and worn pins, inspect gear wear patterns, re-pack wheel bearings, and test air motor seals.

• Major Overhaul (1 Year): Complete machine disassembly. Replace worn gears, bushings, and shafts. Rewind or replace air motors. Re-machine rocker arm surfaces and repaint.

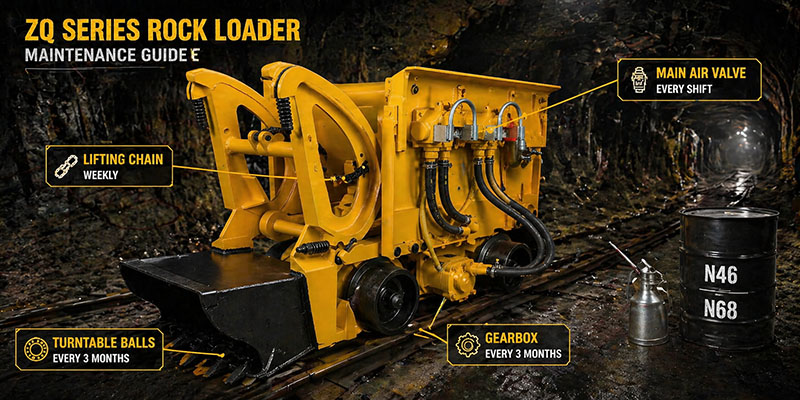

The Complete Lubrication Schedule for ZQ Series & Air Loaders

Pneumatic rocker shovel upkeep is heavily dependent on a film of oil. Without proper lubrication, the high-speed gears in the reducers will weld themselves together, and the main air valve will seize. The schedule below specifies the correct intervals and oil grades for the ZQ series loader and similar air loader designs. Following this plan is the single most effective way to prevent premature air loader repair costs.

• Main Air Valve / Oiler: Frequency: Per Shift

• Procedure: Open the top plug of the main air valve oil reservoir. Inject 1,000 ml of cylinder oil.

• Oil Specification: We highly recommend ISO VG32 or Turbine Oil #1. This ensures the pneumatic pistons and vanes remain slick and corrosion-free.

• Traction Reducer Box: Frequency: Every 3 Months

• Procedure: Drain and thoroughly clean out the old, contaminated oil to remove metal fines and sludge. Refill with approximately 20 kg of oil to a depth of about 15 mm.

• Oil Specification: Use GB/T7631.13-1995 N46 or N68 grade oil.

• Lifting Reducer Box: Frequency: Every 3 Months

• Procedure: Drain and clean the gearbox. Refill with approximately 4 kg of oil (15 mm depth).

• Oil Specification: Use GB/T7631.13-1995 N46 or N68 grade oil.

• Turntable Slewing Balls: Frequency: Weekly

• Procedure: Locate the lubrication bolt on the turntable base. Remove and inject 100 ml of oil to ensure the machine pivots smoothly on the rails.

• Oil Specification: N46 or N68 lubricating oil.

• Lifting Chain: Frequency: Weekly

• Procedure: With the machine stationary, use an oil can to drip oil evenly along the entire length of the lifting chain links. This prevents rust and link binding.

• Oil Specification: N46 or N68 lubricating oil.

• Chain End Pins: Frequency: Per Shift

• Procedure: These pins endure intense friction as the bucket articulates. Apply oil directly to the pin joints using a standard oil can at the start of every shift.

• Oil Specification: N46 or N68 lubricating oil.

Sourcing Reliable Spare Parts (Eimco 12B & ZQ Series)

Even with the most rigorous rock loader maintenance plan, wear parts like wire ropes, bucket lips, chain links, and air motor vanes will eventually need replacement. This is where many operators of vintage Eimco 12B loaders hit a wall. Sourcing genuine Eimco 12B spare parts that are new, high-quality, and priced reasonably is increasingly difficult in the current market. Long lead times for obsolete castings can leave a heading idle for weeks.

This is a significant advantage of upgrading to or sourcing parts for the ZQ series loader. As an active manufacturer, we maintain a massive inventory of air loader spare parts ready for global shipment. Our components—from traction motors to rocker arms—are manufactured using modern metallurgy and precision machining. They are designed to be compatible with classic pneumatic loader designs while offering superior longevity compared to 40-year-old reclaimed parts.

Whether you need a specific gear for an old Eimco rebuild or a full set of pins and bushings for a ZQ17, we can keep your mucking machine where it belongs: at the face, not in the workshop.

Conclusion: Keep Your Mine Moving

The pneumatic rocker shovel is a marvel of simple, robust engineering, but it demands respect in the form of daily care. By adhering to a strict cleaning routine, conducting per-shift inspections, and following the precise mucking machine lubrication schedule using N46/N68 oil, you can dramatically extend the service life of your equipment and prevent costly downtime.

Is your current rock loader due for a major overhaul? Are you tired of hunting for unavailable Eimco 12B spare parts? Perhaps it's time to consider a new, highly efficient ZQ Series Rocker Shovel. Contact our expert team today. We provide parts catalogs, technical support, and competitive quotes to keep your underground operations running smoothly.
