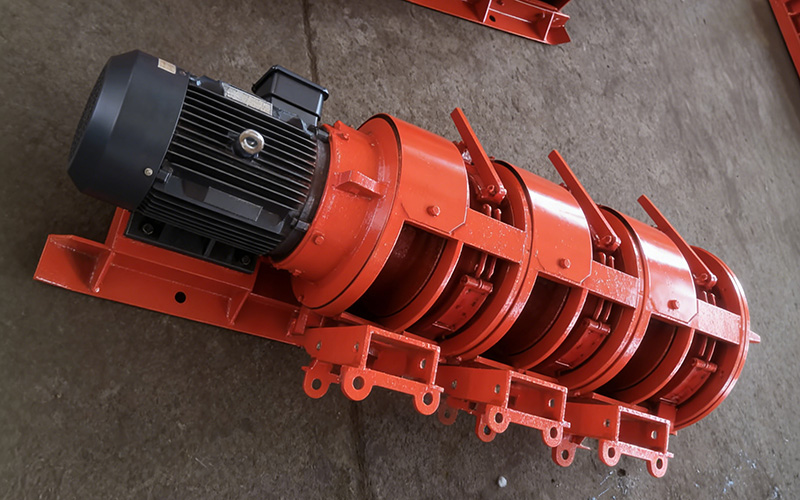

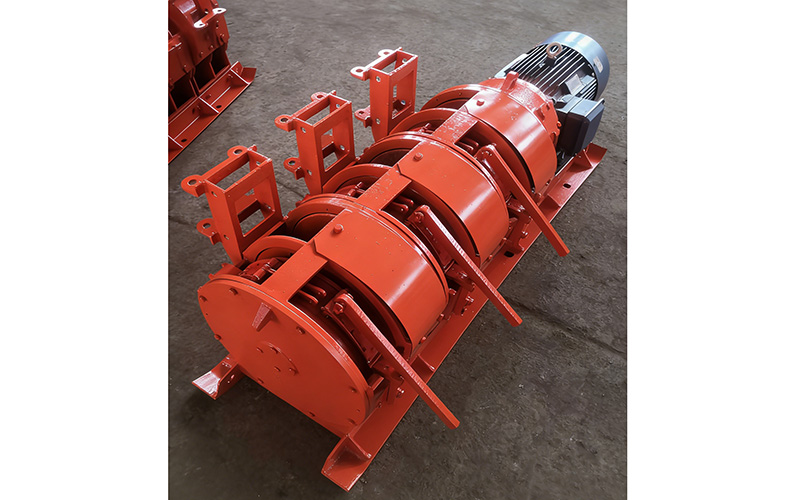

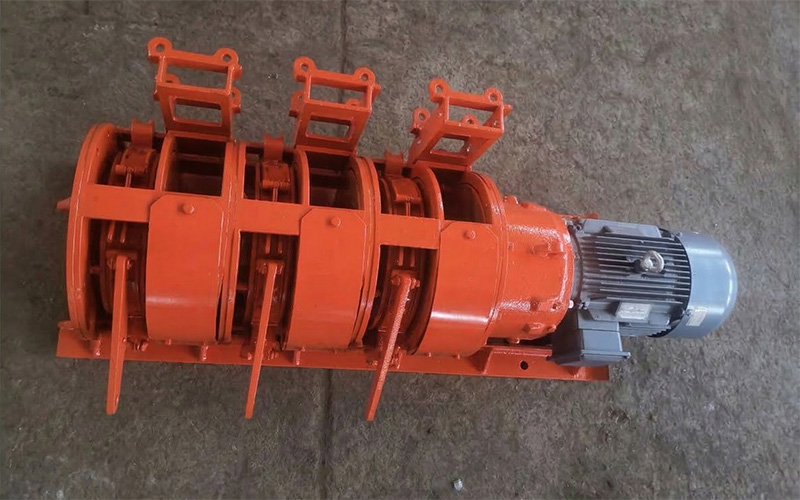

3JP(B) Three-Drum Scraper Winch
- Three-drum design reduces rope wear
- Powerful pulling up to 50 kN
- Compact size fits confined spaces
- IP54 dust & water resistance
3JP(B) Three-Drum Scraper Winch
◆ Three drums, maximum control — The 3JP(B) series is engineered for continuous pulling and scraping in underground and surface mines. With a compact footprint and robust cast construction, it delivers reliable operation even in the most confined drifts. Available in four power variants (7.5 kW to 55 kW), these winches adapt to scraper buckets from 0.1 m³ up to 0.6 m³.
⚙️ Working principle
The 3JP(B) winch uses three independent drums: a working drum for pulling the loaded scraper bucket, an empty drum for returning it, and a third drum that assists in rope management and stabilises the cycle. During operation, the working drum steel rope (∅9.3 – 18.5 mm) hauls the bucket at average speeds of 1.0 – 1.2 m/s, while the empty drum retrieves it at slightly higher speeds (up to 1.8 m/s). This differential speed boosts cycle efficiency without sacrificing control. The planetary gear transmission ensures smooth engagement and high durability under shock loads.
🌍 Typical operating environments
Built to withstand harsh conditions, the 3JP(B) operates reliably in temperatures from -20 °C to +40 °C. The motor enclosure is rated IP54, resisting dust and water splashes — ideal for underground drifts, drawpoints, and transfer points. The winch’s steel structure is treated with anti‑corrosion primer, and all bearings are sealed to prevent grit ingress. Whether in narrow vein mining or open‑pit benches, the compact dimensions (width from 565 mm to 1010 mm) allow easy installation in tight spaces.
✅ Key advantages
The three‑drum design significantly reduces rope wear compared to double‑drum types, as the third drum balances tension during multi‑layer winding. Maintenance is simplified by interchangeable parts across the series and centralized lubrication points. With average pulling forces ranging from 8 kN to 50 kN on the working drum, the 3JP(B) handles everything from light scraping to heavy mucking. The winch is supplied complete with a matched scraper bucket and pulleys (optional), ensuring a ready‑to‑run solution.
📋 3JP(B) series – technical specifications
| Parameter | Unit | 3JP(B)-7.5 | 3JP(B)-15 | 3JP(B)-30 | 3JP(B)-55 |
|---|---|---|---|---|---|
| Scraper bucket volume | m³ | 0.1 | 0.25 | 0.4 | 0.6 |
| Average pulling force (working drum) | kN | 8 | 14 | 28 | 50 |
| Average pulling force (empty drum) | kN | 8 | 10 | 20 | 33.5 |
| Average speed (working rope) | m/s | 1.0 | 1.1 | 1.2 | 1.2 |
| Average speed (empty rope) | m/s | 1.0 | 1.5 | 1.6 | 1.8 |
| Diameter of working steel rope | mm | 9.3 | 12.5 | 15.5 | 18.5 |
| Diameter of empty steel rope | mm | 9.3 | 11 | 14 | 16 |
| Rope capacity (working drum) | m | 45 | 80 | 90 | 100 |
| Rope capacity (empty drum) | m | 45 | 100 | 110 | 130 |
| Motor power | kW | 7.5 | 15 | 30 | 55 |
| Motor speed | rpm | 1440 | 1460 | 1470 | 1480 |
| Length (overall) | mm | 1430 | 1832 | 2025 | 2490 |
| Width (overall) | mm | 565 | 660 | 830 | 1010 |
| Height (overall) | mm | 490 | 620 | 735 | 890 |
| Total weight* | kg | 595 | 989 | 1730 | 3195 |
* Total weight excludes scraper bucket and pulleys. All models feature three drums (3JP(B) = three-drum scraper winch). Rope diameters and capacities are matched to the drum design for optimal lifetime.
* All specifications are nominal and subject to standard tolerances. Contact us for detailed drawings or customized voltage.
