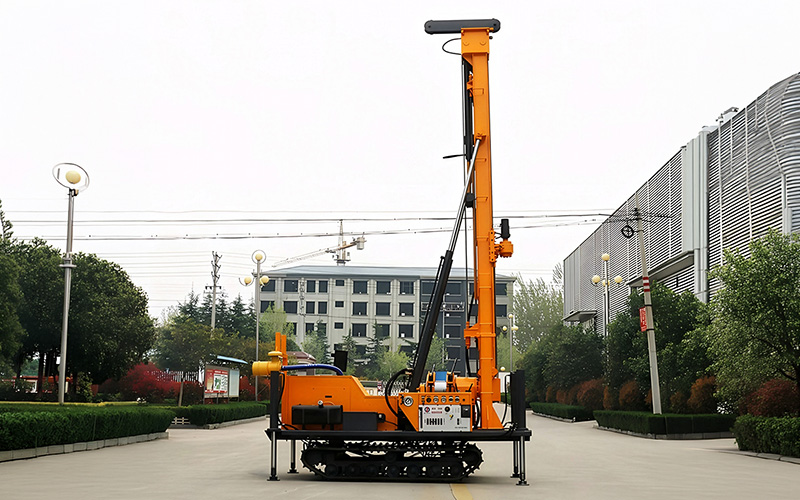

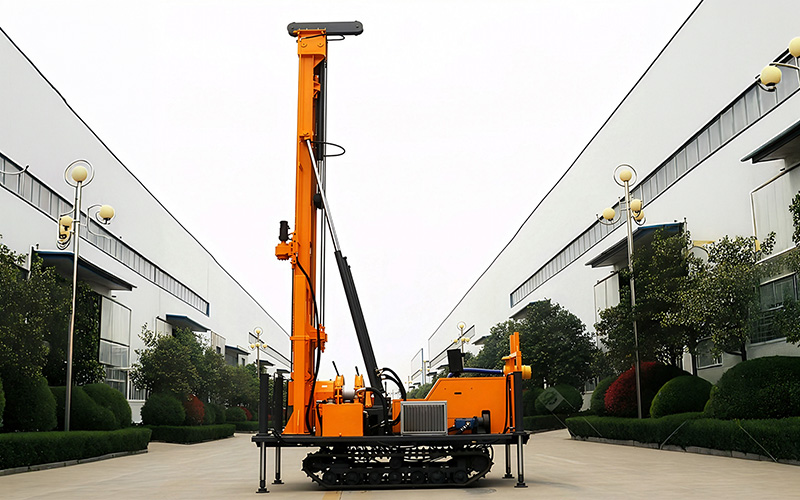

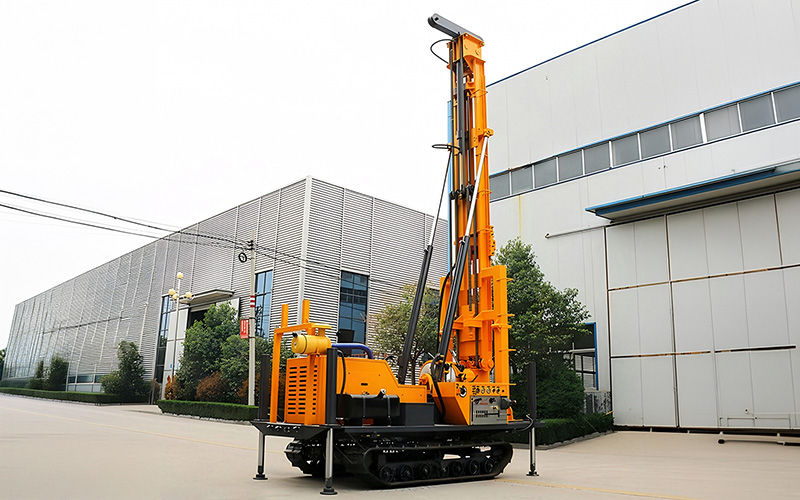

TRD-300 Top-drive Rotary‑Percussive Water‑Air Dual‑Use Drill Rig
- Top-drive rotary with hydraulic thrust
- Dual water & air drilling
- 5000 N·m high torque
- 600m NQ wireline coring depth
⚡ TRD-300 – The ultimate water-air dual-use top-drive drill rig
Integrates water mud drilling and pneumatic DTH hammer drilling into one powerful mechanical top-drive system. Seamlessly adapts to challenging formations: from loose soil, gravel layers to hard bedrock (hardness F6–20). Maximize efficiency, reduce downtime, and achieve superior core recovery.
Key Advantages
5-speed manual synchronized transmission + hydraulic release bearing – high reliability and extended service life.
Mechanical winch provides fast hoisting speed, ideal for handling downhole incidents quickly.
Top-drive rotary with hydraulic thrust enables smooth operation in both mud and air drilling modes.
Dual-use capability – eliminates low efficiency in soil air drilling and hard rock mud drilling.
Outstanding drilling depth: Mud drilling up to 530m, pneumatic drilling 300m, NQ wireline coring up to 600m.
Technical Specifications
General Information
Drill ModelTRD-300
Machine Weight4380 kg
Working FormationLoose soil & bedrock (hardness F6–20)
Drilling MethodTop-drive mechanical rotary + hydraulic thrust | Mud drilling / Pneumatic DTH hammer
Drilling Capacity
Max. Hole Diameter≤350 m* (depth capacity reference)*depth rating, consult technical manual
Mud Drilling Depth530 m
Pneumatic Drilling Depth300 m
NQ Wireline Coring600 m
Drilling AngleAdjustable / flexible
Power Unit
Diesel Engine ModelYN27
Rated Power42 kW
Rated Speed2400 rpm
Power Head
Rotary Speed50 ~ 1020 r/min
Max. Torque5000 N·m
StrokeHydraulic / mechanical stroke integrated
Feed System
Lifting Force4 T
Thrust Force2.1 T
Winch
Mechanical Winch (single rope)4.5 T
Hoisting SpeedFast response, efficient accident handling
Drill Rod
Rod Diameterφ50 / φ76 / φ89 / φ102 mm
Rod Length3000 mm
Crawler Chassis
Travel Speed0 ~ 2 km/h
Climbing Ability20°
Machine Dimensions
Transport Status (L×W×H)5380 × 1575 × 2500 mm
Working Status (L×W×H)3480 × 1575 × 6280 mm
Matching Air Compressor (for Pneumatic Mode)
Total Air Consumption16 ~ 35 m³/min
Working Air Pressure10.5 ~ 24.6 bar
⚙️ Hydraulic thrust + top-drive 💧 Mud / Air switching 🪨 Hardness F6–20 🔩 NQ wireline ready
* Depth parameters depend on geological conditions and drilling assembly. The TRD-300 ensures optimal efficiency in mixed formations.
Why Choose TRD-300?
✔️ Dual drilling method
Seamless switching between mud & air DTH hammer, solving low efficiency in hard rock or loose soil.
Seamless switching between mud & air DTH hammer, solving low efficiency in hard rock or loose soil.
✔️ High torque & speed range
5000 N·m torque & 50–1020 r/min rotary speed for various strata.
5000 N·m torque & 50–1020 r/min rotary speed for various strata.
✔️ Deep drilling capability
Up to 600m NQ coring, 530m mud drilling, 300m pneumatic drilling.
Up to 600m NQ coring, 530m mud drilling, 300m pneumatic drilling.
✔️ Rugged crawler chassis
Climbing ability 20°, travel speed 0~2 km/h – excellent mobility on site.
Climbing ability 20°, travel speed 0~2 km/h – excellent mobility on site.
✔️ Mechanical winch 4.5T
Fast lifting for accident recovery & rod handling.
Fast lifting for accident recovery & rod handling.
✔️ Air compressor compatibility
Demands 16–35 m³/min @ 10.5–24.6 bar, matching industry standards.
Demands 16–35 m³/min @ 10.5–24.6 bar, matching industry standards.
Designed for global drilling contractors who demand versatility, reliability and lower operating costs across water wells, geotechnical exploration, and mineral core drilling.
Frequently Asked Questions
🔹 What formations can the TRD-300 handle?
Based on technical parameters, the TRD-300 works efficiently in loose soil, gravel layers, and bedrock with hardness F6–20. Dual water/air method ensures optimal penetration in mixed conditions.
🔹 What is the maximum drilling depth with mud circulation?
The drill rig achieves mud drilling depth up to 530 meters. For pneumatic DTH hammer drilling, maximum depth is 300 meters. NQ wireline coring extends to 600 meters, making it suitable for exploration projects.
🔹 What air compressor is recommended for pneumatic drilling?
Matching air compressor should supply total air consumption of 16–35 m³/min with working air pressure between 10.5 and 24.6 bar. This ensures optimal performance of the DTH hammer.
🔹 Which drill rod sizes are compatible?
TRD-300 accepts rod diameters φ50, φ76, φ89, and φ102 mm, with standard rod length of 3000 mm. This range covers most exploration and water well drilling requirements.
🔹 What is the torque and rotary speed of the power head?
Power head delivers maximum torque of 5000 N·m and infinitely variable rotary speed from 50 to 1020 r/min, providing excellent control for both soft and hard formations.
🔹 Does the rig have good mobility on rough terrain?
Yes, equipped with a heavy-duty crawler chassis offering travel speed 0–2 km/h and climbing ability up to 20°, ensuring stable transportation on construction and mining sites.
🔹 What is the transport dimension and weight?
Transport dimensions: 5380×1575×2500 mm, machine weight 4380 kg. Compact enough for flatbed or container shipping, yet robust in operation.
💡 Technical highlight: Top-drive mechanical rotary with hydraulic thrust + mechanical winch – the TRD-300 resolves low efficiency in soil air drilling and hard rock mud drilling, delivering energy-saving and high-speed coring operations.
