Self-Lubricating Rock Loaders: Minimal Maintenance​​

Smart Lubrication Solutions for Pneumatic Rock Loaders: Ensuring Peak Performance in Mining Operations

Why Lubrication Matters

Proper lubrication reduces friction by 30–50%, prevents premature wear of critical components like travel motors and hoist valves, and significantly extends equipment lifespan. In harsh mining environments, effective lubrication is the lifeline of pneumatic rock loaders—much like the circulatory system in the human body—ensuring smooth operation and avoiding costly downtime.

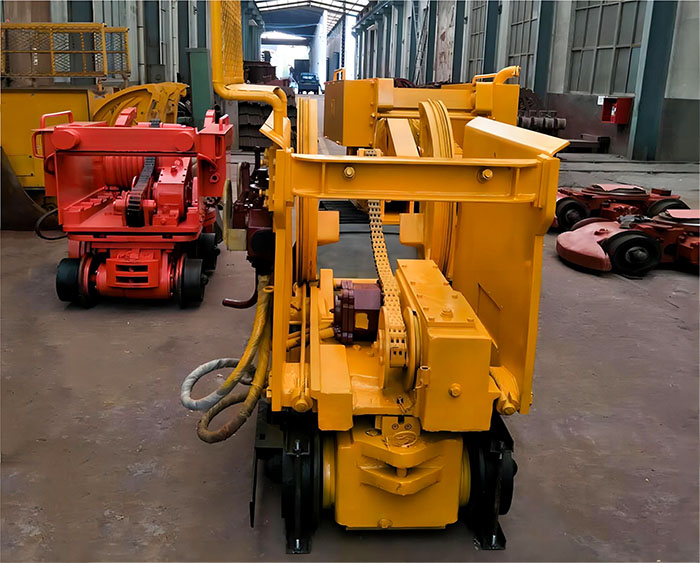

[The new rock loader needs to inject lubricating oil into the travel reduction box and bucket reduction box]

How Automatic Lubrication Works

Pneumatic rock loaders leverage a self-sustaining lubrication system:

• Compressed Air as Carrier: Lubricant-infused compressed air (e.g., Mobil Almo 532) automatically reaches key components—travel control valves, travel motors, bucket lift valves, and hoist motors—without manual intervention.

• Oil-Mist Efficiency: The airflow emulsifies lubricants into fine droplets, coating internal parts evenly while forming a protective seal against dust and moisture.

Initial Setup & Routine Maintenance

1.Gearbox First-Fill (New Machines):

• Travel Gearboxes (Left/Right): Add 9–11 kg of standard machine oil (ISO VG 68–100) via hexagonal plugs on the gearbox covers.

• Hoist Gearbox: Fill with 7–9 kg of standard oil or N68-grade equivalent through the rear cover port.

2.Periodic Checks:

• Gearboxes: Verify oil levels monthly; replace oil every 3 months (quantity same as initial fill). Low oil accelerates gear wear by 70%

• Chains & Cables: Apply general-purpose grease (e.g., calcium-based) weekly to lift chains and bucket-frame stabilization wires.

• Grease Fittings: Lubricate shaft-end and bucket-joint fittings twice weekly using a manual gun to force out contaminants

Pro Tips for Longevity

• Heat & Dust Resistance: Use synthetic lubricants (e.g., PAO-based oils) in high-temperature zones to resist oxidation.

• Monitor Air Quality: Ensure compressed air is filtered to prevent abrasive particles from entering valves—dirty air can shorten component life by 40%.

Final Insight

Automating lubrication via compressed air isn’t just efficient—it’s a game-changer for reliability. By following these steps, mines report 25% fewer breakdowns and 15% lower maintenance costs. Fun fact: Some operators add dye to lubricants for quick visual leak checks!
