WJD-1.0 Electric Scooptram
- Electric Drive System
- Advanced Hydrostatic Transmission
- Hydraulic Control Systems
- Smart Cable Management
ECO-FRIENDLY MINING SOLUTION

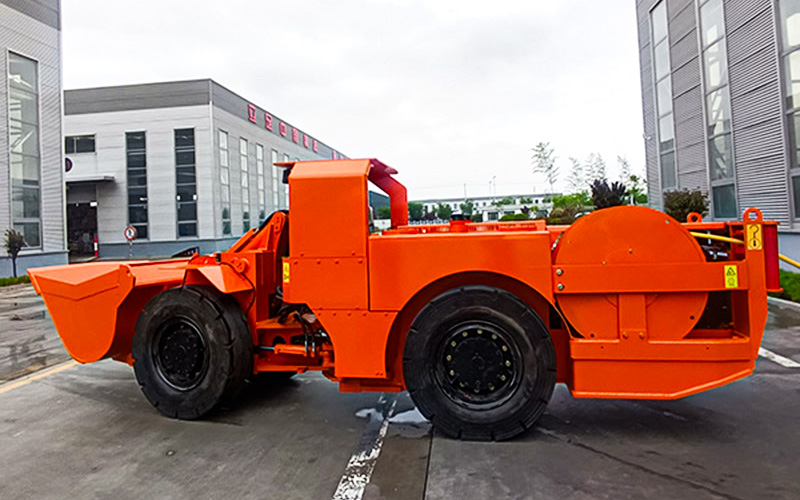

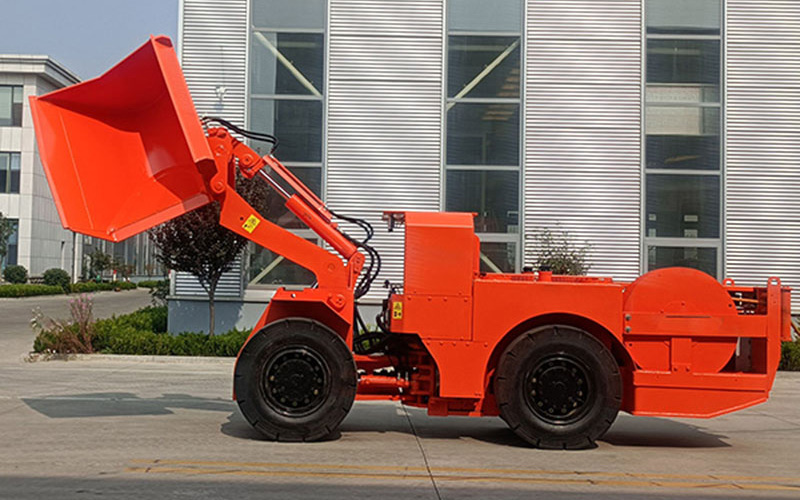

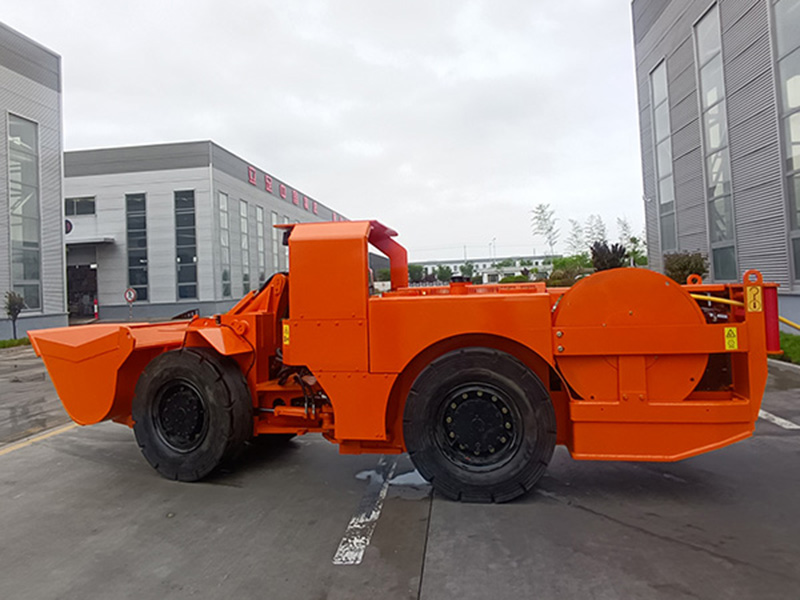

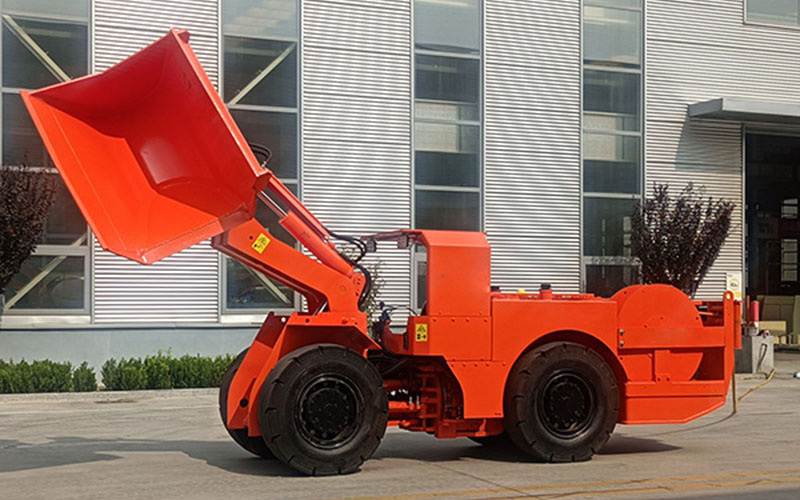

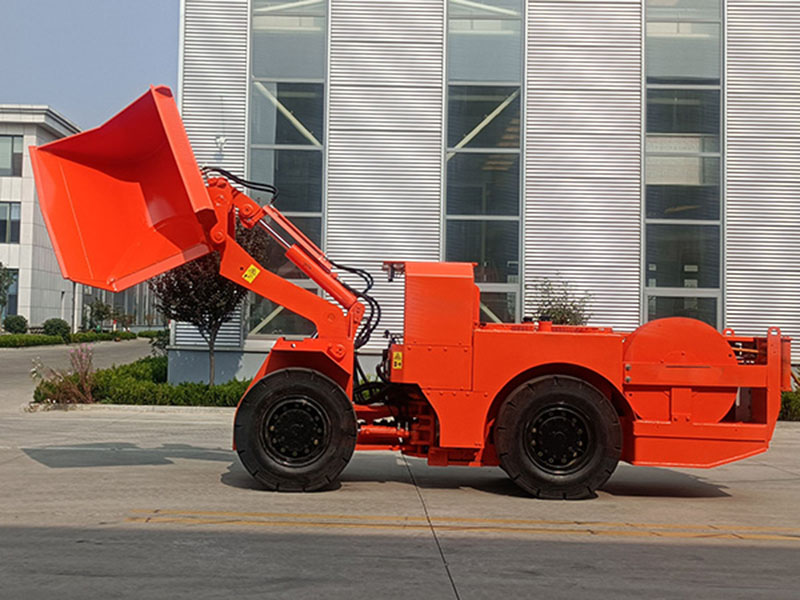

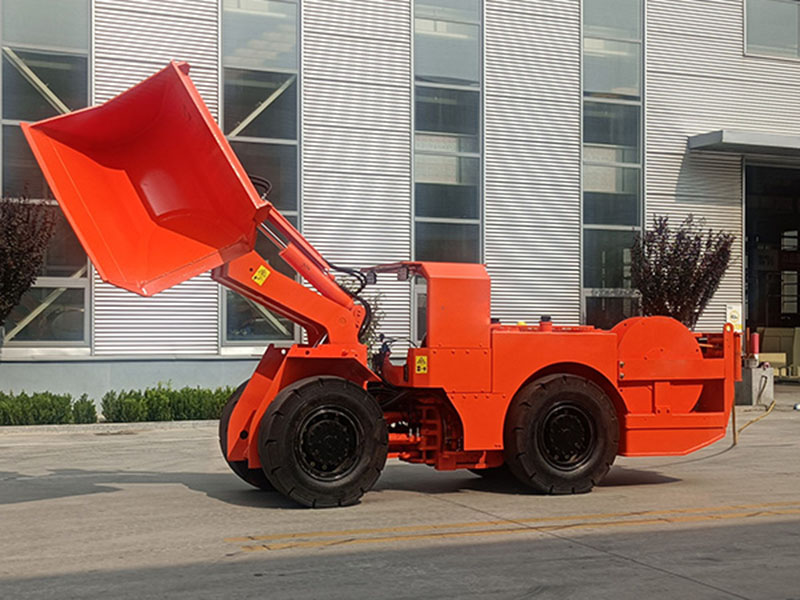

WJD-1.0 Electric Scooptram
High-Efficiency, Zero-Emission Underground Loading and Hauling Solution
Product Overview
The WJD-1.0 Electric Scooptram represents a significant advancement in underground mining equipment technology. Engineered for maximum productivity in confined spaces, this electrically powered loader offers unparalleled efficiency and environmental benefits. With its innovative hydraulic systems and ergonomic controls, the WJD-1.0 delivers exceptional performance while reducing operational costs and environmental impact.
Key Features & Advantages
Electric Drive System
Powered by a high-efficiency Y225-4 electric motor (45 kW), providing clean, consistent power with zero emissions. Significantly reduces ventilation requirements and operational costs compared to diesel alternatives.
Advanced Hydrostatic Transmission
Features a responsive hydrostatic drive system delivering smooth acceleration and precise speed control (0-8 km/h). This system eliminates mechanical transmission components, reducing maintenance needs.
Hydraulic Control Systems
Full hydraulic control for travel direction and speed adjustments, providing instant response to operator inputs. Hydraulic pilot controls significantly reduce operator fatigue during extended shifts.
Smart Cable Management
Integrated hydraulic cable reel system with adjustable tension control extends cable service life by up to 40%. Automatic payout/retrieval maintains optimal tension during operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WJD-1.0 |
| Bucket Capacity | 1.0 m³ |
| Rated Load | 2.0 T |
| Operating Weight | 7.2 T |
| Travel Speed | 0-8 km/h |
| Max. Climbing Gradient | 20° |
| Turning Radius (Inner/Outer) | 2540 mm / 4260 mm |
| Wheel Base | 2200 mm |
| Max. Dumping Height | 1160 mm |
| Dumping Reach | 860 mm |
| Electric Motor Model | Y225-4 |
| Rated Power | 45 kW |
| Tire Model | 10.00-20 |
| Overall Dimensions (L×W×H) | 6090×1380×2020 mm |
Optional Equipment:
Tire Protection Chains - Extend tire life in abrasive conditions
Operational Benefits
The WJD-1.0 delivers superior productivity in narrow-vein mining applications. Its compact dimensions (6.09m length × 1.38m width) enable exceptional maneuverability in confined spaces. The electric power system eliminates exhaust emissions, significantly improving underground air quality and reducing ventilation costs by up to 30%. With industry-leading hydraulic response times and ergonomic controls, operators experience reduced fatigue and increased productivity during extended shifts.
