Navigating Mine Hoist Selection: Your Guide to CSME’s Comprehensive JTP, JK, and 2JK Series

At the heart of every successful underground mining operation lies a silent workhorse: the mine hoist. Whether you’re lowering personnel, hauling ore from the depths, or transporting heavy equipment, the reliability of your hoisting system is non-negotiable. A miscalculation in selecting the right hoist can lead to operational bottlenecks, safety hazards, and unbudgeted costs.

As a trusted partner in the global mining industry, Changsha Mining Equipment Co., Ltd. (CSME) understands this pressure intimately. We don’t just manufacture hoists; we deliver a one-stop solution for durable, cost-effective lifting solutions. Our portfolio, encompassing the versatile JTP, the robust JK, and the powerful 2JK series, is engineered to meet the most demanding specifications you’ll encounter from Kazakhstan to Peru. This guide will walk you through the key parameters of our mine hoists, empowering you to make an informed, confident choice for your project.

Decoding the Core Parameters: What to Look For

Choosing a mine hoist isn't about horsepower alone. It’s a careful balancing act between four critical factors: load capacity, lifting distance, speed, and operational flexibility. Let’s break down how CSME’s data sheet translates into real-world, underground performance.

1. The Foundation of Force: Maximum Static Tension

The maximum static tension (kN) is the starting point. It tells you the heaviest safe load the hoist can handle. Our range begins with the compact JTP-1.0×0.8, rated at a precise 20 kN, ideal for small-scale auxiliary lifting or material transport in narrow-vein mines. For mid-tier operations requiring more muscle, the JK-2.5×2.0 offers a commanding 90 kN, effortlessly managing heavier ore skips. And when your operation demands top-tier lifting power, the JK-3.5×2.5 delivers a formidable 170 kN, making it the backbone of deep shaft production hoisting.

2. The Reach: Lifting Height and Drum Configuration

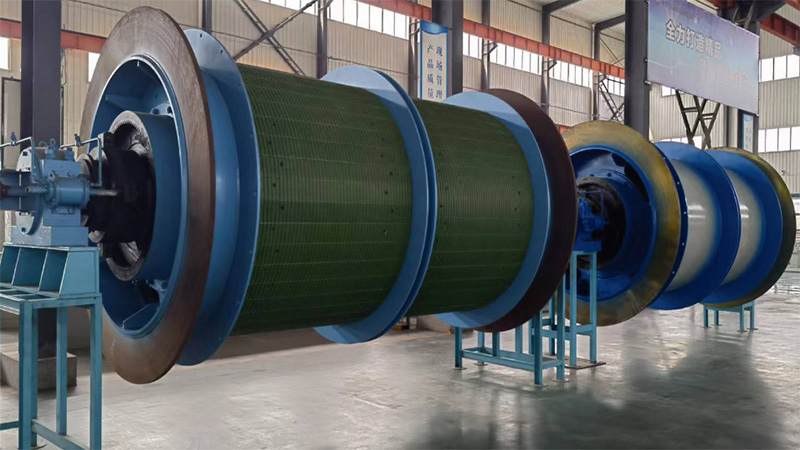

A hoist’s lifting height (m) is directly tied to its drum’s rope capacity. Notice how the parameter “Lifting Height / Transport Length” varies across layers. The single-drum JTP-1.6×1.2, with a drum width of 1200 mm, can achieve a rope capacity of 838 meters in three layers. For deeper shafts, a controlled switch to the JK-3.0×2.5 is necessary, extending your reach to an impressive 1770 meters. CSME provides clear, multi-layer data, allowing you to plan not just for current depth but for future mine expansion.

3. Velocity and Precision: Steel Wire Rope Speed

The rope speed (m/s) dictates your cycle time. The JTP series, with speeds ranging from 1.2 to 4.1 m/s, offers finely tuned control for precise material handling. For high-volume lifting in main shafts, the JK series steps up significantly, with the JK-3.5 series achieving a swift 4.3 to 6.8 m/s. This balance of speed and control ensures that a CSME hoist can efficiently pull ore without compromising on the smooth, safe operation your engineers demand. A perfectly matched motor power (kW), from 22 kW in the JTP range up to 1400 kW in the largest JK-3.5 units, guarantees this performance under a ≤1000 or ≤750 r/min motor speed regime.

Single vs. Double Drum: The Defining Choice for Your Shaft

One of the most strategic decisions is between our single-drum (JTP/JK) and double-drum (2JTP/2JK) configurations.

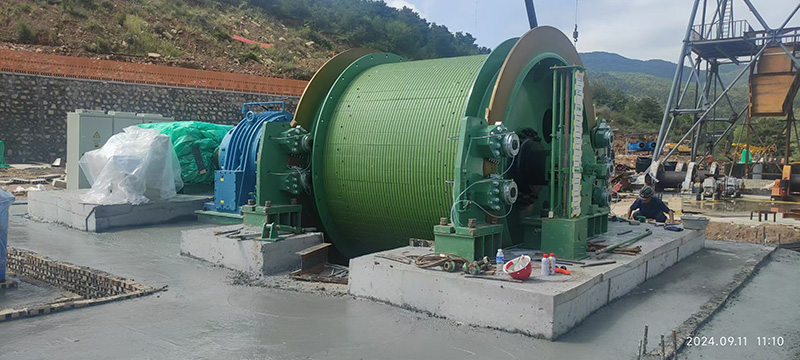

A single-drum hoist is the workhorse for simple, vertical lifting in a single conveyance. The JTP-1.2 series, weighing around 8,500 kg with a compact 5.0×5.0×2.2 m footprint, is a favorite for operators in Ecuadorian and Peruvian narrow-vein mines because of its practical installation and proven reliability.

A double-drum hoist, distinguished by a parameter like “Center Distance Between Two Drums”, is engineered for flexibility. It’s the master of twin-skip or skip-and-cage operations, allowing for counterbalanced lifting that saves significant energy. For instance, the 2JK-2.5×1.5 features a 1590 mm drum center distance and tackles a 55 kN static tension difference, making it perfect for shaft-sinking or stage hoisting. Our 2JK series, extending up to the colossal 2JK-3.5×2.6, handles a massive 170 kN total tension with a 115 kN differential, demonstrating our capability to engineer solutions for the most complex hoisting circuits.

The CSME Commitment: Beyond the Specification Sheet

Numbers on a page are a promise. At CSME, we ensure that promise is kept in the field. Our hoists are built with a singular focus on durability. From the high-grade steel in our drums to the precision of our speed reducers (supporting speed ratios from 20 to 31.5), every component is designed for longevity in harsh environments, minimizing your maintenance downtime.

Our expertise isn’t confined to a catalog. We are your consultative partner. Having served operations across Tanzania, Bolivia, and Indonesia, our team understands that a hoist from CSME represents a critical link in your profitability chain. Our 24/7 professional after-sales support and dedicated engineers are ready to move beyond generic advice and help you interpret these parameters for your specific mineralogy, shaft dimensions, and output targets.

Your Lifting Challenge, Our Engineered Solution

Selecting the right mine hoist is a foundational decision. With CSME’s extensive JTP, JK, and 2JK series, you aren’t just choosing a model; you are accessing a spectrum of capability backed by a team committed to your operational success. We invite you to move beyond the brochure.

Contact our engineering team today. Send us your site specifications—shaft depth, expected payload, and duty cycle—and we will provide a tailored recommendation that aligns exactly with your lifting requirements and budget. At CSME, we go further to lift more for you.

Sabrina He | Mining Machinery Specialist

With over 14 years of experience in the mining equipment industry, Sabrina He specializes in machinery selection, technical troubleshooting, and plant optimization.
