How to Match Side Dump Mining Wagons with Your Underground Locomotives

In underground narrow-gauge haulage, profitability isn’t just about horsepower; it’s about the delicate balance between your locomotive’s traction capacity and your wagon’s payload. An oversized mine car can burn out a locomotive’s motor on a steep incline or cause dangerous wheel slip, while an undersized one turns your expensive prime mover into an inefficient shuttle, killing your cycle time.

Getting this match right is the most critical engineering decision for your transport system. The YCC Series curved rail side dump wagon is engineered to close this gap, providing the perfect mucking partner for 2.5-ton to 12-ton battery locomotives.

Understanding the Mechanics: Non-Stop Unloading Efficiency

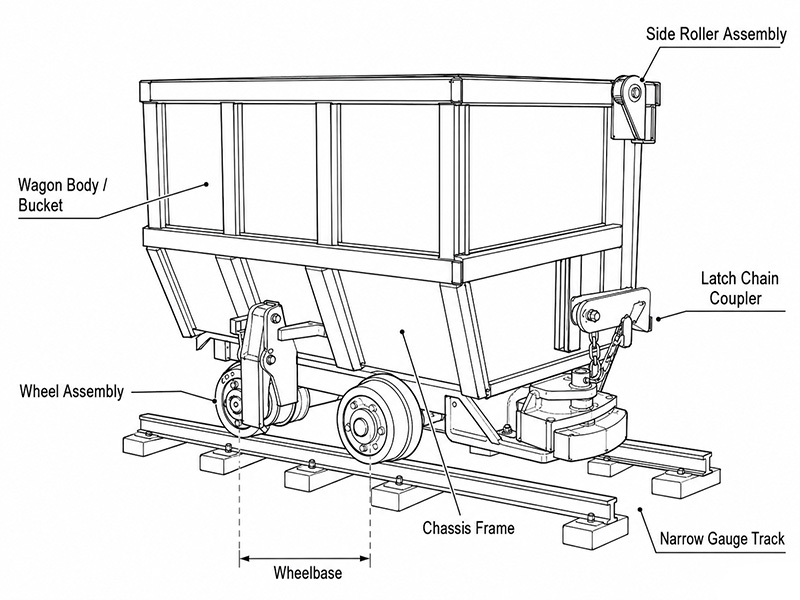

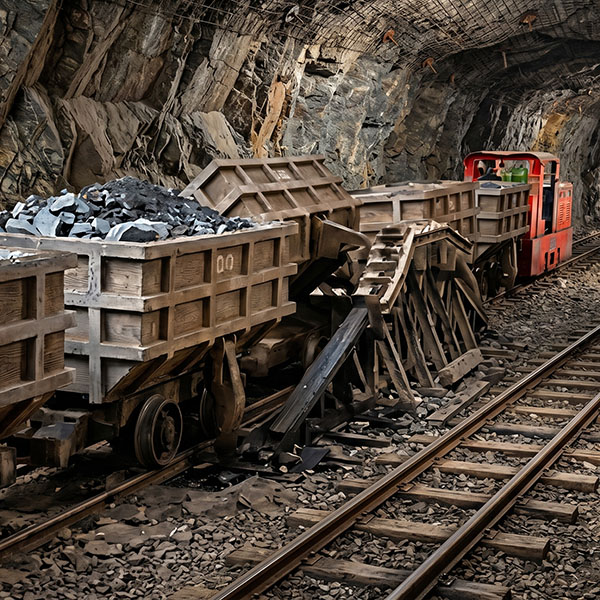

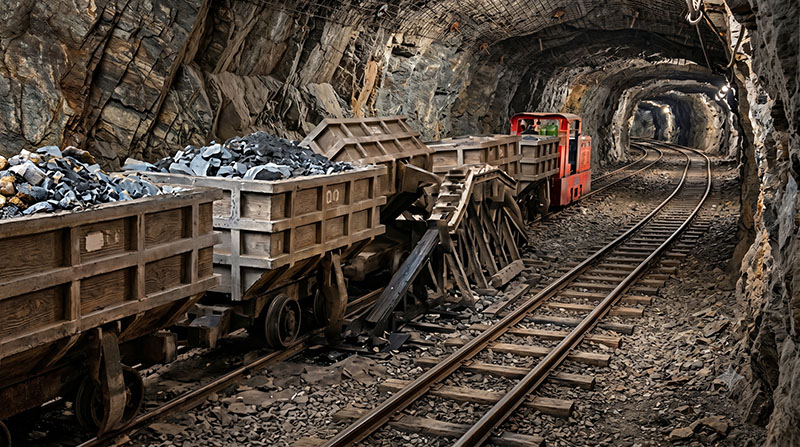

Why do modern mines insist on the curved rail side dump wagon over traditional fixed-box or bottom-dump cars? The answer lies in continuous cycling. On-site videos clearly show the advantage: as the train approaches the ore pass, the wagon’s side rollers engage with a specially designed curved rail track.

Without stopping, and without the need for external hydraulic power or manual decoupling, the locomotive’s forward motion automatically tilts the bucket to a 42-45° unloading angle, discharging the muck in seconds. The train keeps moving, slashing total cycle time dramatically compared to rotary dumpers that require stopping and precise positioning.

Golden Matching Rules: Locomotives vs. YCC Mining Wagons

To prevent bottlenecking your operation, we’ve broken down the ideal pairings based purely on engineering compatibility—balancing dead-load weight, rolling resistance, and pulling power.

Scenario A: Light-Duty Locomotives (2.5-Ton & 5-Ton)

For narrow veins, exploration drifts, or small-scale mines, agility is everything.

• Your Locomotive Specs: The 2.5-ton locomotive offers a maximum traction of 6.13 kN, often running on 600mm gauge track with a minimal turning radius of just 5m. The 5-ton version steps up to 12.26 kN.

• The Best Match:

• 1.2㎥ Double Side Dump Wagon: With a light dead weight of just 1,000 kg and a payload of 1.6 tons, this car is easily pulled in a rake of 5-6 units by a 2.5-ton loco. Its incredibly compact wheelbase (620mm) and 8m turn radius handle the sharp, winding haulage ways of older mines perfectly.

• 1.6㎥ Curved Track Wagon: The ideal upgrade for a 5-ton locomotive. It weighs 1,363 kg and carries 4 tons. The 800mm wheelbase offers excellent tracking stability without compromising maneuverability on a 10m radius curve.

Scenario B: Medium-Duty Locomotives (8-Ton & 12-Ton)

This is the backbone of medium-scale production haulage. Here, single-trip capacity dictates your mine’s output.

• Your Locomotive Specs: The 8-ton loco pulls up to 19.62 kN, while the powerful 12-ton delivers a robust 29.43 kN of peak traction. Both run efficiently on 762mm or 900mm track gauges at speeds of 6.2 to 8.7 km/h.

• The Best Match:

• 2.5㎥ Curved Track Wagon: Weighing 2,205 kg with a 6.25-ton load, this wagon is the most versatile performer for 8-ton locomotives. The 1,200mm wheelbase provides high-speed stability on main haulage roads.

• 4㎥ Curved Track Wagon: Designed specifically to maximize the investment in a 12-ton battery loco. With a massive 10-ton payload and a 2,000mm wheelbase, this combination ensures the highest possible cycle capacity without over-stressing the locomotive’s motor during a ramp-up.

The Critical Factor: Coupler Integrity

We’ve seen cheap couplers fail catastrophically under dynamic load. That’s why every YCC wagon in this range uses a high-tensile latch chain coupler. When a 12-ton locomotive jerks a loaded 10-ton wagon up a 1-in-7 grade, the stress peaks exponentially. The latch chain design absorbs this shock and locks securely, eliminating the risk of accidental uncoupling—a safety guarantee for your crew.

Heavy-Duty Manufacturing: Built for Severe Underground Impact

The statistics look clean on a spec sheet, but underground reality is brutal. Large jagged rocks don’t gently fill a box; they smash into it. Our manufacturing focuses on impact resilience. The wagon bodies are fabricated using thick, wear-resistant steel plate with reinforced top rails to prevent deformation from ballistic loading. Full-penetration welding techniques ensure the chassis doesn't crack under cyclic stress. When the side rollers hit the curved rail, the torsional load on the frame is immense. Our reinforced high-traction frame—connecting the high traction point to the suspension—guarantees your unloading station doesn’t become a breakdown station.

Configure Your Mine’s Perfect Transport System

Choosing the wrong wagon starves your locomotive or breaks it. The right match—whether a 1.2㎥ car for snaking through a 5m radius or a 4㎥ heavy-lifter for mainline output—protects your drive motor and enables non-stop, efficient muck disposal. Don’t guess your configuration. Send us your locomotive tonnage and track gauge today, and our engineering team will calculate the perfect wagon configuration to maximize your mine’s operational ROI.
