How to Match a Mucking Loader with a 4-Ton Dump Truck for Max Efficiency

The "3-minute loading rule" isn't just operational folklore—it’s basic mathematics. Filling a 4-ton underground dump truck in under three minutes is entirely achievable when your mucking loader and truck are dimensionally synchronized. Yet across South America and Africa, many mine operators struggle with chronically low output simply because their equipment is mismatched.

A scraper mucking loader that is too high, too short, or ill-suited to the drift floor will cripple your production cycle. This guide walks you through the critical specifications you must check before pairing a loader with your 4-ton truck, and the costly nightmares you will face if you get the combination wrong.

The 3 Critical Matching Parameters

To achieve that three-minute cycle, dimensional harmony is non-negotiable. Here are the three specifications that must align.

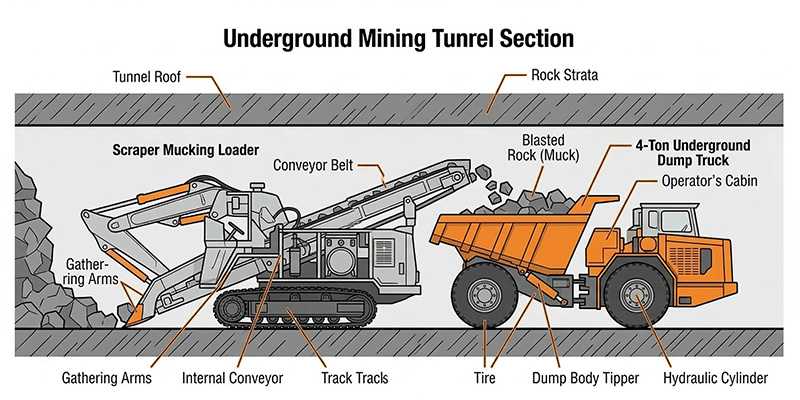

1. Discharge Height vs. Truck Height

Your D40/D40L 4-ton dump truck has a vehicle height of just 1300mm to 1420mm, with a cargo box edge sitting at approximately 450mm . If your mucking loader’s discharge height is too low, the scraper arm will collide with the truck body during operation. If it is too high, falling ore will smash into the truck bed with excessive force, prematurely wearing down the 5mm bottom and 3mm side sheets.

The solution requires a loader with a discharge height that comfortably clears the truck edge while minimizing drop distance. Our ZWY-60 and ZWY-80 series scraper mucking loaders offer a discharge height starting from 1550mm (up to 1750mm), providing the exact clearance needed to protect your truck bed while ensuring smooth material flow .

2. Dumping Distance vs. Cargo Box Length

The D40 truck features a cargo box length of 2600mm . If your loader’s dumping distance is too short, all 1.6 cubic meters of rock will pile up at the rear of the box, failing to utilize the full volume and creating dangerous spillage. An effective match requires a loader with an adjustable dumping distance that can reach the front wall of the box. Our ZWY series loaders feature extendable dumping distances ranging from 1800mm up to 2700mm, allowing the operator to distribute material evenly across the entire 2600mm length for a full, balanced load every cycle .

3. Minimum Roadway Section

Your equipment needs room to breathe. Operating in tunnels ranging from 2.2 x 2.2 meters to 2.8 x 2.8 meters requires compact machinery. The loader must fit the drift profile while retaining enough clearance to turn and maneuver without scraping the walls. The physical footprint of your mucking loader must match your tunnel dimensions to maintain safety and cycle speed .

Adapting to South American & African Mines

Underground conditions in Peru, Chile, and the DRC are rarely forgiving. Many veins are narrow, inclines are steep, and floor conditions vary dramatically from hard rock to wet, muddy drifts. This is where chassis selection becomes critical .

For operations with relatively flat, hard tunnels, a wheeled mucking loader (such as the ZWY-60G/80G) offers speed. With a walking velocity of up to 1.45 m/s, they are ideal for moving quickly across hardstand surfaces. However, their climbing grade is limited to ≤15°.

For the rugged, steep, and wet inclines common in African and South American small-scale mines, a tracked chassis is essential. Tracked loaders (ZWY-60LG/80LG) provide superior traction on muddy or uneven ground, handle climbing grades up to ≤25°, and feature high ground clearance (≥260mm) to navigate debris without getting high-centered . If your drift has a 20° wet incline, a tracked loader is the only way to ensure your truck gets loaded.

The Costly Consequences of Choosing Wrong

Ignoring these parameters leads to specific operational nightmares. The first is the "Spillage Nightmare." If the discharge height is miscalculated, heavy ore smashes the truck bed, causing dents and tears. If the dumping distance is too short, spillage accumulates behind the truck, requiring costly manual cleanup and halting the loader .

The second is the "Bottleneck Effect." Purchasing a loader that is too wide for a 2.2m tunnel means it gets stuck at the face. Buying a wheeled loader for a steep, wet incline means it slips and fails to reach the truck entirely. Your "3-minute" cycle becomes a 30-minute struggle, killing your production target and delaying the entire mining cycle.

Conclusion

Buying mining equipment isn't just about horsepower ratings; it's about dimensional harmony. The difference between a smooth, three-minute loading cycle and a day of frustrating downtime lies in the millimeters of your discharge height and the type of tracks under your chassis.

Are you mining in a narrow vein in South America or dealing with steep inclines in Africa? Stop guessing and start calculating. Send us your tunnel dimensions and daily production target today. Our engineers will analyze your site conditions and calculate the exact ZWY mucking loader and D40 truck combo you need. Contact us now for a free technical consultation to maximize your underground efficiency.
